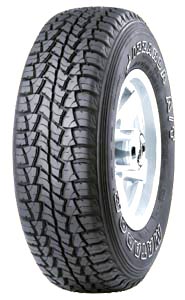

Tyre Bead Wire is bronze-coated wire used to reinforce virtually all types of pneumatic tyres for heavy, medium and light four and two wheel vehicles .

Tyre bead wires have high strength and ductility, superior adhesion, consistent physical properties, uniform surface finish and winding. The wires can be produced to meet specific customer requirements.

The Tyre Bead wire plant is designed for an Ultimate capacity of 30,000 Metric Tons per Year. The current capacity is 12000 Metric Tons per Year.


Properties of Tyre Bead Wire
Diameter
(mm)
Breaking
Load (Kg)
Elongation At Break Torsion Minimum No of Bends Minimum Coat Weight
(Gm/Kg)
0.90 ± 0.02 120 min 5.00 % min 58 10 0.30 -1.50
0.93 ± 0.02 122 min 5.00 % min 58 10 0.30 -1.50
0.965 ± 0.02 130 min 5.00 % min 58 10 0.30 - 1.50
1.10 ± 0.02 178 min 5.00 % min 58 10 0.30 - 1.50
1.30 ± 0.02 235 min 5.00 % min 58 10 0.30 - 1.50
1.50 ± 0.02 315 min 5.00 % min 58 10 0.30 - 1.50

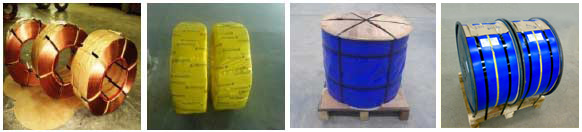

Dimensions of Packaging with Photos
Size Type of Packing
Z2 Cheese Coil Bobbin
0.90 -1.50 mm ID -380 mm
OD -750 mm
Width -285 -300mm
OD-760 mm
Barrel Dia-400 mm
Bore Dia-33 mm
Inner Width -305 mm
Outer Width -349 mm
Pallet Base -760 mm x760 mm
Pallet Height - 690 mm
Pallet Base -760 mm x760 mm
Pallet height - 880 mm
Spool Weight - 73 Kg
